Physics is the science that studies the nature and properties of matter and energy. It covers topics like motion, heat, light, sound, electricity, magnetism, and the structure of atoms.

• Question 51:

  The limiting frictional force between two surfaces depends on

  I. the normal reaction between the surfaces

  II. the area of surface in contact

  III. the relative velocity between the surfaces

  IV. the nature of the surfaces

  Options:
  A) I only
  B) II only
  C) III only
  D) I and IV only
  Show Answer
  The correct answer is D .
• Question 52:

  The slope of the straight line displacement-time graph indicates?

  Options:
  A) distance traveled
  B) uniform velocity
  C) uniform acceleration
  D) uniform speed
  Show Answer
  The correct answer is B .
• Question 53:

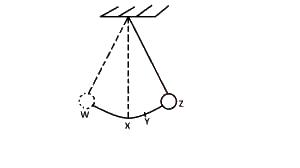

  From the diagram above, the bob of the pendulum has the fastest speed at

  Options:
  A) X
  B) Y
  C) Z
  D) W
  Show Answer
  The correct answer is A .
• Question 54:

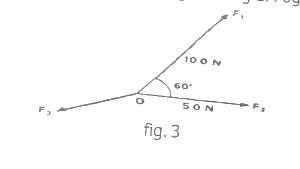

  In fig 3, three forces F1, F2, and F3 acting at O are in equilibrium. If the magnitude of F1 is 10N,and the magnitude of F2 is 5N, find the magnitude of F3

  Options:
  A) 26.4N
  B) 15.0N
  C) 13.2N
  D) 10.0N
  Show Answer
  The correct answer is C .
• Question 55: Which type of motion do the wheels of a moving car undergo? Options:
  A) Vibratory and translational motion
  B) Random and translational motion
  C) Rotational mand oscillatory motion
  D) Translational and rotational motion
  Show Answer
  The correct answer is D .
• Question 56:


  The effect of closing the key K in the circuit shown in the figure above would be to?

  Options:
  A) increase the current by 0.4A
  B) reduce the current by 0.4A
  C) increase the current by 0.6A
  D) reduce the current by 0.6A
  Show Answer
  The correct answer is A .
• Question 57: Which of the following quantities has the same unit as the watt? Options:
  A) Force x time
  B) Force x distance
  C) Force x acceleration
  D) Force x velocity
  Show Answer
  The correct answer is D .
• Question 58: A parallel plate capacitor has a common plate area of 5 x 10^-8m² and plate separation of 2 x 10³m, Assuming free space, What is the capacitance? [$\epsilon$_o = 9.0 X 10^-12C²N^-1m^-2] Options:
  A) 2.25 x 10^-17F
  B) 4.50 x 10^-17F
  C) 2.25 x 10^-16F
  D) 4.50 x 10^-16F
  Show Answer
  The correct answer is C .
• Question 59:

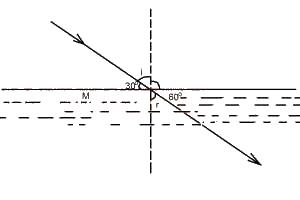

  The refractive index of the medium M in the diagram above is

  Options:
  A) 1/√3
  B) 2√3
  C) √3
  D) 2/√3
  Show Answer
  The correct answer is C .
• Question 60:

  Which of the following is not a vector quantity?

  Options:
  A) momentum
  B) force
  C) temperature
  D) displacement
  Show Answer
  The correct answer is C .
