Physics is the science that studies the nature and properties of matter and energy. It covers topics like motion, heat, light, sound, electricity, magnetism, and the structure of atoms.

• Question 151:

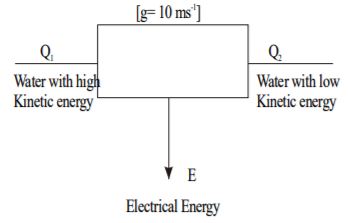

  The fig above represents the main sequence of energy conversion at Kainji dam. What is the efficiency of the system?

  Options:
  A) Q1/Q2
  B) E/Q1
  C) E/(Q1-Q2)
  D) E/(Q1-Q2)
  Show Answer
  The correct answer is B .
• Question 152:

  A boy standing some distance from the foot of a tall cliff claps his hands and hears an echo 0.5s later. If the speed of sound is 340ms${}^{-1}$, how far is he from the cliff?

  Options:
  A) 680m
  B) 170m
  C) 34m
  D) 85m
  Show Answer
  The correct answer is D .
• Question 153:

  If in a simple pendulum experiment the length of the inextensible string is increased by a factor offour, its period is increased by a factor of?

  Options:
  A) 4
  B) $\frac{\pi }{2}$
  C) $\frac{1}{4}$
  D) 2
  Show Answer
  The correct answer is D .
• Question 154: The number of neutrons contained in the nucleus ${}_{92}^{238}U$ is Options:
  A) 92
  B) 146
  C) 238
  D) 330
  Show Answer
  The correct answer is B .
• Question 155: A gas would serve as an electrical conductor under Options:
  A) reduced pressure and high current
  B) increased magnetic field
  C) reduced pressure and reduced potential
  D) exposure to visible light
  Show Answer
  The correct answer is A .
• Question 156:



  The figure above shows displacement-time graphs for three different motions. which of the following statements is correct

  Options:
  A) graph 2 corresponds to the highest velocity
  B) graph 1 corresponds to zero gravity
  C) graph 3 corresponds to a particle moving in the negative x direction
  D) graph 2 corresponds to a particle moving in the positive x direction
  Show Answer
  The correct answer is D .
• Question 157:



  In the diagram above, if the internal resistance of the cell is zero, the ration of the powers P₁ and P₂ dissipated by R₁ and R₂

  Options:
  A) ^R₂/_R1
  B) ^R₁/_R2
  C) ^R₁+R₂/_R1
  D) ^R₁+R₂/_R2
  Show Answer
  The correct answer is A .
• Question 158: When ${}_{82}^{210}Pb$ decays to ${}_{80}^{206}Pb$, it emits Options:
  A) two alpha and two beta particles
  B) an alpha particle
  C) one beta particle
  D) one alpha and one beta particle
  Show Answer
  The correct answer is B .
• Question 159: An organic pipe closed at one end is 80cm long. Determine the frequency of the fundamental note assuming that the speed of sound in air is 340ms^-1 Options:
  A) 106Hz
  B) 213Hz
  C) 318Hz
  D) 425Hz
  Show Answer
  The correct answer is A .
• Question 160:

  Rainbow formation is as a result of the combination of which of the following phenomena?
  (i) Reflection
  (ii) Dispersion
  (iii) Total internal reflection
  (iv) Refraction

  Options:
  A) (ii) and (iv) only
  B) (i), (iii) and (iv) only
  C) (ii), (iii) and (iv) only
  D) (i), (ii) and (iv) only
  Show Answer
  The correct answer is C .
