Physics is the science that studies the nature and properties of matter and energy. It covers topics like motion, heat, light, sound, electricity, magnetism, and the structure of atoms.

• Question 131: Determine the inductive reactance when a 30.0mH inductor with a negligible resistance is connected to a 1.3 x 10³Hz oscillator. Options:
  A) 39.0$\mathrm{\Omega }$
  B) 122.5$\mathrm{\Omega }$
  C) 245.0$\mathrm{\Omega }$
  D) 39000.0$\mathrm{\Omega }$
  Show Answer
  The correct answer is C .
• Question 132:

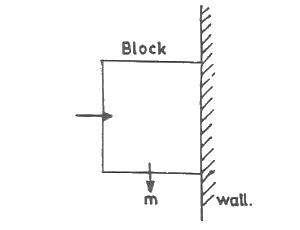

  A block of mass m is held in equilibrium against a vertical wall by a horizontal force. If the coefficient of friction between the wall and the block is µ, the minimum value of the horizontal force is

  Options:
  A) µmg
  B) (1-µ)mg
  C) (1+µ)mg
  D) mg/µ
  Show Answer
  The correct answer is D .
• Question 133: Eight alpha decays and six beta decays are necessary before an atom of 2 ${}_{92}^{238}U$ achieves stability. The final product in the chain has an atomic number of Options:
  A) 70
  B) 78
  C) 82
  D) 90
  Show Answer
  The correct answer is C .
• Question 134: Under constant tension and constant mass per unit length, the note produced by a plucked string is 500Hz when the length of the string is 0.90m. At what length is the frequency 150Hz? Options:
  A) 3m
  B) 4m
  C) 5m
  D) 6m
  Show Answer
  The correct answer is A .
• Question 135:



  A uniform light beam XZ is Hinged at X and kept in equilibrium by the forces T and F as shown in the diagram above. if XO = 20m and OY = 30cm, express T in terms of F

  Options:
  A) T =2√3/3
  B) T= 2F
  C) T = 5V3F/3
  D) T = 5F
  Show Answer
  The correct answer is D .
• Question 136:

  The distance between an object and its real image in a convex lens is 40cm. If the magnification of the image is 3, calculate the focal length of the lens

  Options:
  A) 6.5 cm
  B) 7.5 cm
  C) 8.5 cm
  D) 4.5 cm
  Show Answer
  The correct answer is B .
• Question 137:

  Which of the following media allow the transmission of sound waves through them?

  I. air

  II. liquid

  III. solids



  Options:
  A) I and II only
  B) I and III only
  C) II and III only
  D) I, II and III
  Show Answer
  The correct answer is D .
• Question 138: A semiconductor diode is used in rectifying alternating current into direct current mainly because it Options:
  A) allows current to flow in either direction
  B) is non-linear
  C) offers a high input resistance
  D) allows current to flow only in one direction
  Show Answer
  The correct answer is D .
• Question 139: A car of mass 800kg attains a speed of 25m/s in 20 secs. The power developed in the engine is Options:
  A) 1 . 25 x 10⁴ W
  B) 2 . 50 x 10⁴ W
  C) 1 . 25 x 10⁶W
  D) 2 . 50 x 10⁶ W
  Show Answer
  The correct answer is B .
• Question 140: In a gas experiment, if the volume of the gas is plotted against the reciprocal of the pressure, the unit of the slope of the resulting curve is Options:
  A) force
  B) temperature
  C) power
  D) work
  Show Answer
  The correct answer is D .
