Physics Exam Past Questions and Answers | JAMB, WAEC and NECO

Physics is the science that studies the nature and properties of matter and energy. It covers topics like motion, heat, light, sound, electricity, magnetism, and the structure of atoms.

• Question 831:



  The graph in the fig above describes the motion of a particle. the acceleration of the particle during the motion is

  Options:
  A) 0.00ms^-2
  B) 0.25ms^-2
  C) 4.00ms^-2
  D) 8.00ms^-2
  E) 10.00ms^-2
  Show Answer
  The correct answer is C .
• Question 832:

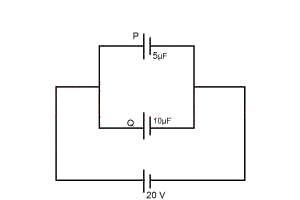

  The diagram above shows two capacitors P and Q of capacitance 5μF and 10μF. Find the charges stored in P and Q respectively

  Options:
  A) 2μC and 4μC
  B) 4μC and 2μC
  C) 100μC and 200μC
  D) 200μC and 100μC
  Show Answer
  The correct answer is C .
• Question 833: A particle of mass M which is at rest splits up into two. If the mass and velocity of one of the particles are m and v respectively, calculate the velocity of the second particle Options:
  A) $\frac{mv}{M}$
  B) $\frac{Mv}{M-m}$
  C) $\frac{mv}{M+m}$
  D) $\frac{mv}{M-m}$
  Show Answer
  The correct answer is D .
• Question 834: A machine has a velocity ratio of 4. if it requires 800 N to overcome a load of 1600 N,what is the efficiency of the machine? Options:
  A) 60%
  B) 50%
  C) 40%
  D) 2%
  Show Answer
  The correct answer is B .
• Question 835:

  The linear expansivity of brass is 2 x 10${}^{-5}$ C${}^{-1}$. If the volume of a piece of brass is 15.00cm at 0°C, what is the volume at 100°C

  Options:
  A) 16.03cm${}^3$
  B) 15.09cm${}^3$
  C) 16.00cm${}^3$
  D) 15.03cm${}^3$
  Show Answer
  The correct answer is B .
• Question 836:

  The limiting frictional force between two surfaces depends on

  I. the normal reaction between the surfaces

  II. the area of surface in contact

  III. the relative velocity between the surfaces

  IV. the nature of the surfaces

  Options:
  A) I only
  B) II only
  C) III only
  D) I and IV only
  Show Answer
  The correct answer is D .
• Question 837: What type of electromagnetic radiation can be used to take photographs in the haze? Options:
  A) Radio waves
  B) infrared rays
  C) Visible light
  D) Gamma rays
  Show Answer
  The correct answer is B .
• Question 838: What is the least possible error in using a rule graduated in centimeters? Options:
  A) 0.1cm
  B) 0.5cm
  C) 1.0cm
  D) 2.0cm
  Show Answer
  The correct answer is A .
• Question 839: Which of the following is TRUE of the particles emitted in radioactive disintegration? Options:
  A) the alpha particle is the helium nucleus H
  B) the alpha particle is lighter than the beta particle
  C) the alpha particle is deflected more than the beta particle in a magnetic field
  D) the beta particle is deflected more than the alpha particle in a magnetic field
  Show Answer
  The correct answer is D .
• Question 840: The speed of light in vacuum is 3.0 x 10⁸ms^-1. If the refractive index of a transparent liquid is $\frac{4}{3}$, then the speed of light in the liquid is Options:
  A) 0.44 x 10 ⁸ms^-1
  B) 2.25 x 10 ⁸ms^-1
  C) 3.0 x 10 ⁸ms^-1
  D) 4.0 x 10 ⁸ms^-1
  E) 4.33 x 10 ⁸ms^-1
  Show Answer
  The correct answer is B .
