Physics is the science that studies the nature and properties of matter and energy. It covers topics like motion, heat, light, sound, electricity, magnetism, and the structure of atoms.

• Question 1:

  A train of mass 1600 kg attains a speed of 25 ms${}^{-1}$ in 20 seconds. The power developed in the engine is?

  Options:
  A) 2.5 KW
  B) 80 KW
  C) 25 KW
  D) 50 KW
  Show Answer
  The correct answer is D .
• Question 2:

  Which of the following can be described as high tension transmission?

  Options:
  A) High resistance and low voltage
  B) Low current and high voltage
  C) High current and low voltage
  D) High current and low resistance
  Show Answer
  The correct answer is B .
• Question 3:

  The lowest note emitted by a stretched string has a frequency of 40Hz. How many overtones are there between 40Hz and 180Hz?

  Options:
  A) 4
  B) 3
  C) 2
  D) 1
  Show Answer
  The correct answer is B .
• Question 4:



  In a light experiment with a convex lens a student plotted a graph as shown above of the reciprocal of object distance (1)/u against the reciprocal of image distance (1)/v . the focal length of the lens is given as

  Options:
  A) slope of line PQ
  B) Reciprocal of either OP or OQ
  C) Length OP or OQ
  D) area under the graph E ratio OP/OQ
  Show Answer
  The correct answer is B .
• Question 5:

  Which of the following equations is the correct definition of the reactance of an indicator L?

  Options:
  A) Reactance = (Amplitude of voltage) $÷$ (Amplitude of current)
  B) Reactance = (Amplitude of voltage) x (Amplitude of current)
  C) Reactance = (Amplitude of current)${}^2$ $÷$ (Amplitude of voltage)
  D) Reactance = (Amplitude of current)${}^2$ $÷$ (Amplitude of voltage)$\frac{1}{2}$
  Show Answer
  The correct answer is A .
• Question 6:

  The mechanical advantage (MA) of an inclined plane depends on

  Options:
  A) its length
  B) its height
  C) the product of its length and height
  D) the ratio of its length to its height
  Show Answer
  The correct answer is D .
• Question 7:



  The resultant capacitance in the figure above is

  Options:
  A) 15.0µF
  B) 9.8µF
  C) 1.3µF
  D) 0.8µF
  Show Answer
  The correct answer is D .
• Question 8:

  Which of the following is an example of a couple?

  Options:
  A) All of the above.
  B) The forces that are applied to the handle of a screwdriver when you twist it.
  C) The forces that are applied to a cross wench to loosen or tighten the lug nuts on a wheel of a car.
  D) The forces that are applied to the steering wheel of a car when you turn it.
  Show Answer
  The correct answer is A .
• Question 9: Two bodies have masses in the ratio 3:1. They experience forces which impart to them acceleration in the ratio 2:9 respectively. Find the ratio of forces the masses experienced. Options:
  A) 1 : 4
  B) 2 : 1
  C) 2 : 3
  D) 2 : 5
  Show Answer
  The correct answer is C .
• Question 10:

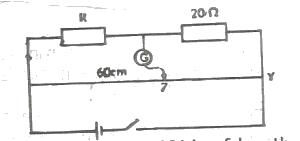

  The diagram above shows a meter bridge in which two of thee arms contain resistances R and 2Ω. A balance point is obtained at 60cm from the left end , calculate the value of R

  Options:
  A) 1.2Ω
  B) 1.3Ω
  C) 3.0Ω
  D) 6.0Ω
  Show Answer
  The correct answer is C .
